TRAKKA TC-300 for sale!

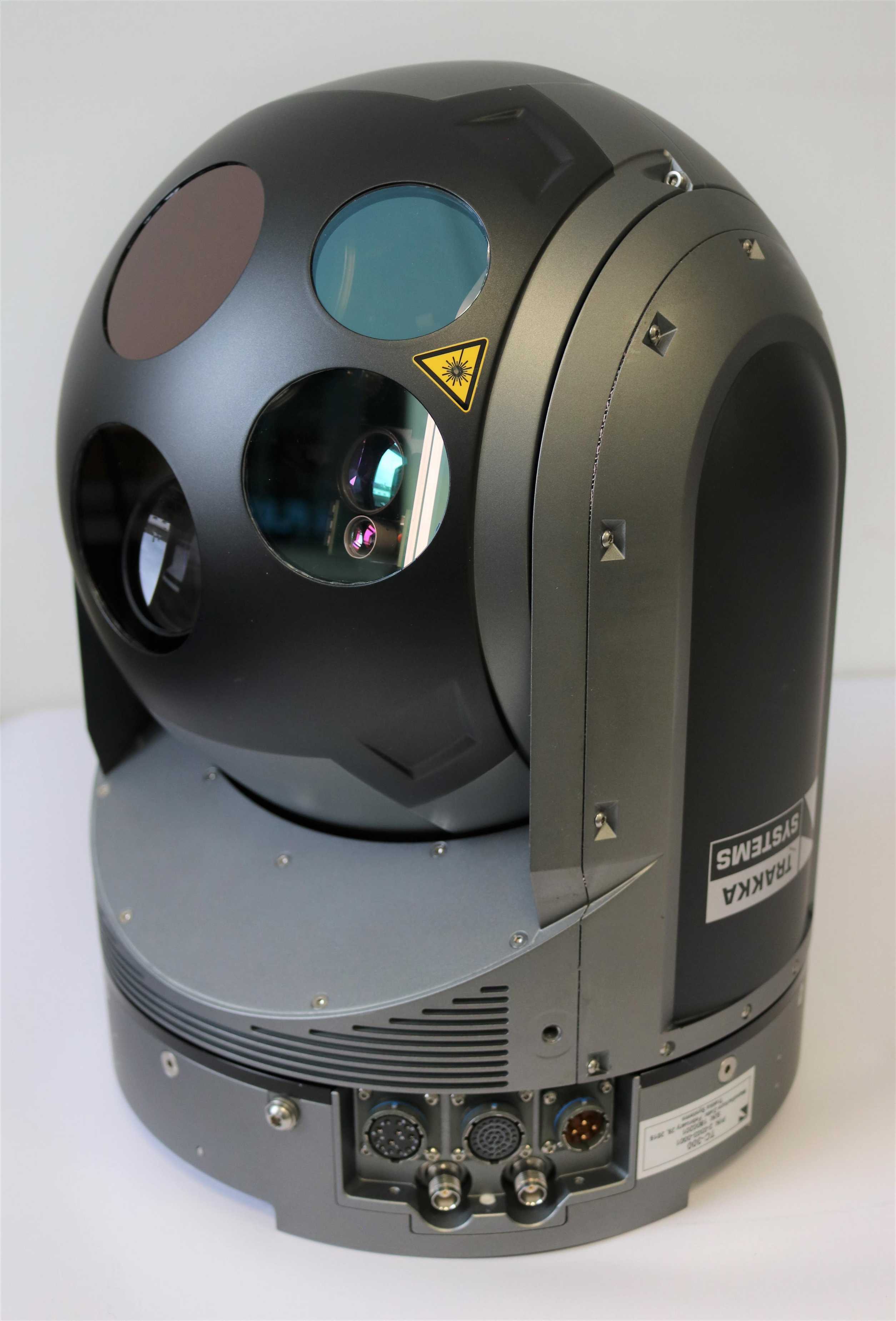

Isometric view

TRAKKA TC-300
Multi-Sensor Surveillance System

Single-LRU multi-sensor surveillance system contained in a 300mm gimbal with 4-axis gyro stabilization and fully-integrated IMU/GPS. The System was used for lab testing only with less than 500h hours of in-lab operation (no flying).

Manufacturer Date: S/N 1800201; February 2019,

For further details please contact info(at)sst-flugtechnik.com

Price on request.



Specifications:

Diameter: 11.8” / 300mm

Weight: ca. 19 kg

Power: +22 … 32 VDC

AZ coverage: 360° cont.

EL coverage: +20° to -120°

Side view



Sensors:

  • HD Color TV Camera: Global Shutter CMOS, 2064x1544, cont. zoom
  • IR Camera: 3-5μm MWIR array (cooled), 640x512, cont. zoom
  • Laser Range Finder (LRF): < 12km (Class 1 eye safe, 1 Hz, ±5m)
  • Internal IMU/INS

Interfaces:

RS-422, RS-232, Ethernet, HD-SDI

Functions & Features:

Video Auto-Tracking, Geo-Location, Geo-Hold, KLV Metadata

Available Accessories:

Drying Unit, Hand Control Unit, Cable Kit
