Kodiak 100 Patrol Aircraft

This STC describes the Maritime/Border Patrol mission system installation on a Kodiak 100 Series Aircraft, designed and certified by SST Flugtechnik GmbH. ⇒ Download the product flyer
The baseline aircraft Kodiak 100 is a multi-purpose, single-turboprop aircraft manufactured by QUEST Corporation in the USA. It has been FAA certified according to FAR-23 and validated by EASA.

Typical mission scenarios are:

Sea Surveillance Missions
Coastline Patrol
Search and Rescue Missions
Border Patrol

The main features of the modification are:

Multi mode radar system
EO/IR camera
Automatic Identification System (AIS)
Equipment rack
Operator console
Fully integrated mission software
SatCom and InterCom system
Data Link
Retractable pilot and co-pilot step

Kodiak Patrol Aircraft

This selection of equipment allows to detect, recognize and identify targets on ground, at sea or in costal areas. Moving targets can be located and tracked and evidences of any suspicious activites can be recorded. In case of the maritime variant AIS equipped vessels and ships can be detected and identified.

Patrol Aircraft radome with extended EO/IR camera

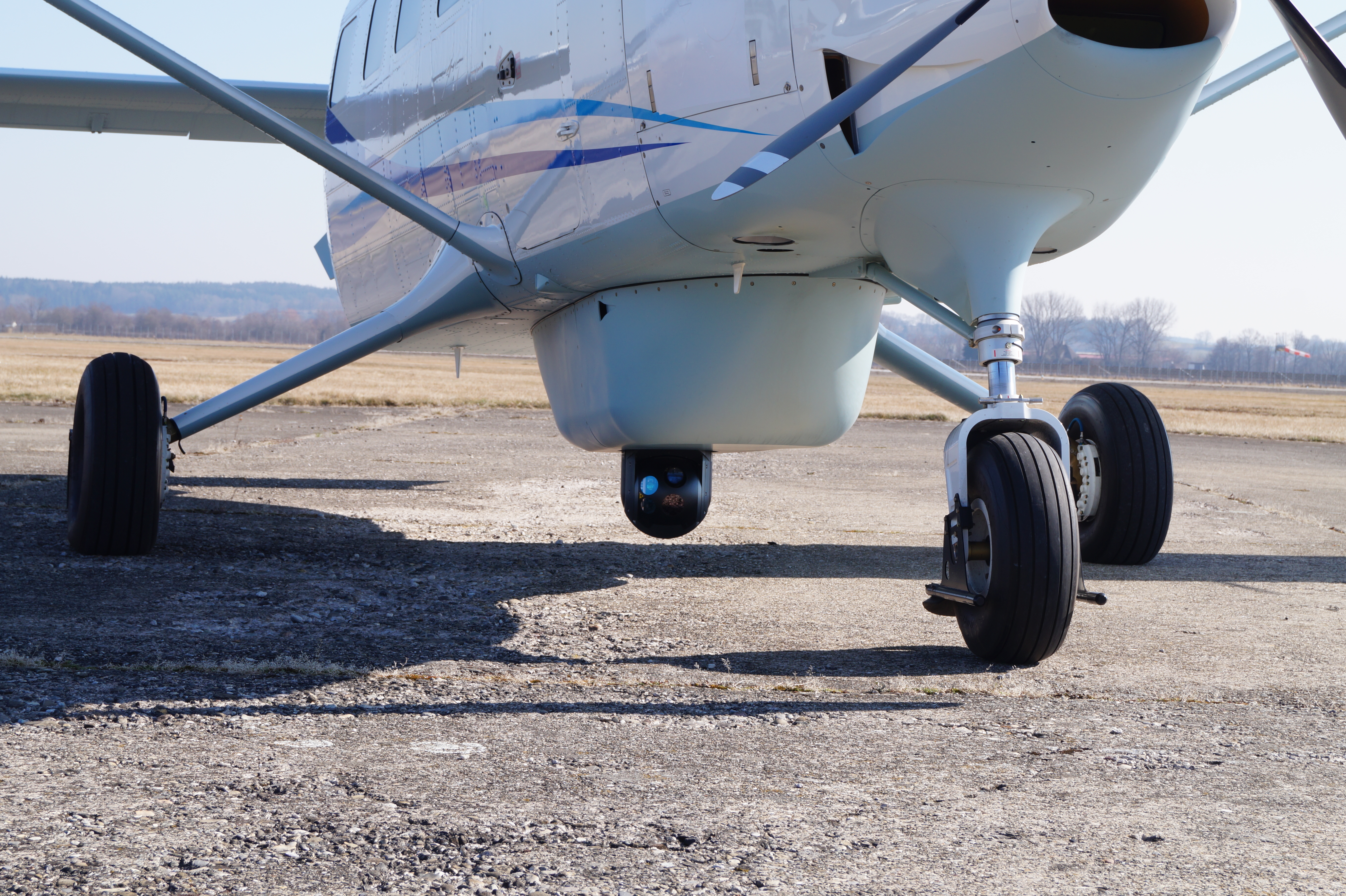

EO/IR camera in extended position

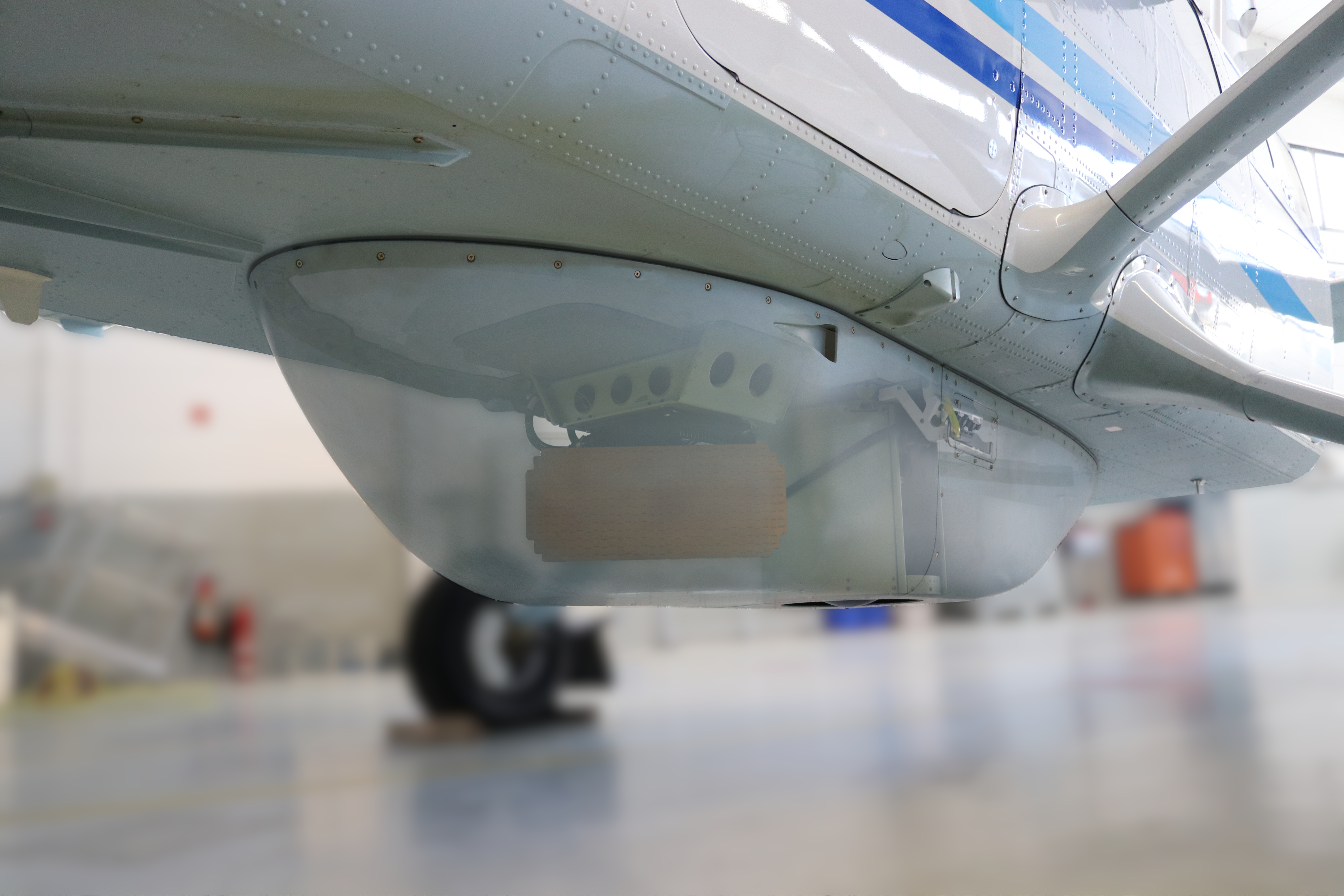

View into the Patrol Aircraft radome Search radar in front portion of the radar, lift system for EO/IR camera in the back

Virtual Tour through the Aircraft

Take a virtual tour through the aircraft cabin

Customization

The individual equipment and sensors can be customized and configured to your specific mission requirements:

Leonardo PICOSAR installation certified as part of the external ISR provisions (EASA STC: 10079002)

Do not hesitate to contact us!
